Brand Name : GNEE
Certification : SGS
Place of Origin : CHINA
MOQ : ≥1sets
Payment Terms : MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability : Annual Production 30,000 tons
Delivery Time : Transit time: Est. 17-24 days
Core Components : Pressure vessel
Capacity : 10,000 liters
Working Temperature : -196 - 50 ℃
Filling Rate : 95%
Max Working : 3.6 MPa
Design Standard : SGS,ASME
Warranty : 1 Year,
Marketing Type : New Product 2025
Outer Material : Q235R/Q345R Carbon Steel
Pressure : 0.8Mpa
Max Working Pressure : 2.16mpa
Length : 11000mm
Product Description
An LPG tank, also known as an LPG cylinder or storage vessel, is engineered to store propane, butane, or a mixture of both in their liquid state, which is achieved by maintaining the gas at a high pressure. Depending on the uses of LPG, such tanks come in various shapes, sizes, and materials. They range from small portable cylinders for household use to large, fixed tanks for commercial or industrial purposes.
Product Parameters
| Volume (m³) | Pressure (MPa) | Work Medium | Type | Weight (kg) | Size (D*H)mm |
| 5 |
0.8 |
liquid oxygen liquid nitrogen liquid argon |
Vertical or horizontal | 3412 | 2000*5130 |
| 10 | 5378 | 2100*7170 | |||
| 15 | 6415 | 2500*6912 | |||
| 20 | 8255 | 2500*8765 | |||
| 30 | 12899 | 2900*8870 | |||
| 50 | 18960 | 3100*12058 | |||
| 100 | 34480 | 3600*15947 | |||
| 5 |
1.6 | 3945 | 2000*5130 | ||
| 10 | 6787 | 2000*7845 | |||
| 15 | 8628 | 2400*7552 | |||
| 20 | 10744 | 2400*9371 | |||
| 30 | 14640 | 2700*10310 | |||
| 50 | 23370 | 3100*12058 | |||
| 5 |
2.16 |
liquid carbon dioxide | 4450 | 2000*5130 | |
| 10 | 6986 | 2100*7170 | |||
| 15 | 8810 | 2500*6912 | |||
| 20 | 11328 | 2500*8756 | |||
| 30 | 17961 | 2500*8875 | |||
| 50 | 26097 | 3200*11300 | |||
| 100 | 49627 | 3500*16870 |




Uses of LPG tanks
Liquefied petroleum gas can be used in a number of applications, which include:
· Heating (particularly popular in off-grid homes).
· Cooking appliances
· Alternative fuel for cars and other vehicles
· Refrigerant
· Industrial uses
Thus, just like the storage and transportation of LNG, LPG tanks are the most efficient way to deliver LPG and provide easy access to it.
LPG tanks in industry
A number of industries use LPG as an energy carrier. It’s also used as feedstock for the chemical synthesis of substances such as butene, propylene, ethylene and acrylic acid. Again, LPG tanks serve the purpose of facilitating the different industries’ access to this substance.
ABOUT US
GNEE has a professional team with 150 employees, including 2 senior engineers, 17 engineers and 10 assistant engineers. Based on excellent technical capabilities, rich experience and a strong sense of responsibility, the team ensures that every product meets international standards and satisfies customer needs. We adhere to the talent concept of "combining attraction with cultivation, combining use with development, and combining management with care" and are committed to building a professional team that emphasizes both technology and service.
If you want to learn more about GNEE's products, you can send an email to info@gneeheatex.com. We are more than happy to assist you.
|
|

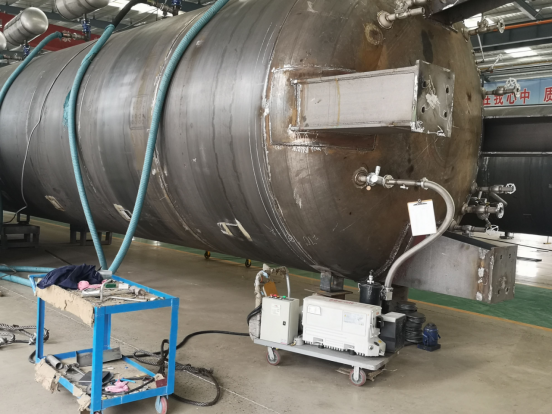

Hot Sale Pressure Tank Storage Equipment 15000 Liter LPG Gas Tank Images |
